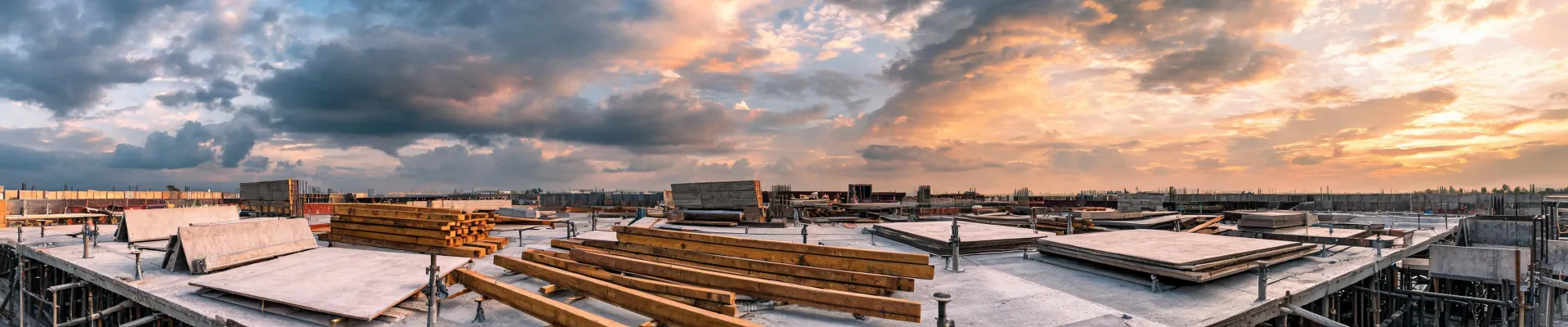

Formwork technical article header image

Doka Formwork Material List: Shoring Systems and Baker Scaffold Sourcing Guide

2026-09-24 · Akiko Fujimori

If you're building a Doka formwork material list for a job site, don't start by checking line items off a spreadsheet. Start with this: layer the list by delivery urgency, not by product category — most "emergency" orders aren't capacity problems, they're missing line items.

I've coordinated purchasing and logistics for a formwork and rental supply company in the Midwest for eight years. Over the last 14 months, I've personally handled 200+ rush orders, including same-day re-ships for general contractor clients. The number holds: roughly 85% of those emergencies traced back to the same thing. A missing pin. A box of wedge clamps nobody counted. One H20 beam coupler left off the sheet. The shipment sat on a dock, and the site stood still anyway.

And that's the part that hurts. A six-man crew standing around because a $45 accessory box didn't show up costs you over $4,000 a day.

So before you talk to any distributor, here's the structure your list should actually follow. Below is the order in which orders fall apart, not the order in which catalogs print.

The Doka Formwork Material List — Four Layers, Four Failure Points

Most dealers treat the material list as a single sheet. It's four sheets stacked on top of each other, and each one moves on a different supply logic. Keep them separate:

  1. Panels and sheets — large-format panels, plywood facings, pre-assembled units. Longest lead time, fewest variables.
  2. Load-bearing beams — H20 timber beams, steel walers, trusses. Wood is bought by pallet or by volume. Watch your batch.
  3. Accessories — pins, wedge clamps, tie rods, nuts, washers, corner connectors. Highest line count. Also the highest kill rate.
  4. Shoring and scaffolding — props, adjustable supports, base plates, couplers, plus any Baker scaffold. This is the layer most jobs get wrong somewhere around formwork stripping.

Let's go through each layer. Not because each is hard, but because each fails in a different way.

Layer 1: Panels and Sheets

Panels are rarely the bottleneck themselves until you hit non-standard sizes or custom shapes. Lead times are predictable. The trap is assuming a spec is in stock because the system says so. Verify against the batch number once before you commit. "It's in the computer" has burned me more than any other phrase in this job.

Layer 2: H20 Beams

Prefabricated timber beams manufactured to EN 13377 — the model designation H20 falls under that standard — are nominally interchangeable between manufacturers. Nominally.

What actually separates them is web thickness, glue line quality, and end protection. Check all three any time you're taking delivery from a supplier you haven't used before. I've seen a pallet arrive where the beam profile was right on spec and the clamps cracked during installation, because the core moisture content was too high. You can't see that from a purchase order.

One more thing on H20: if you can't source Doka-branded beams in a specific length locally, alternative EN 13377-compliant H20 beams will generally fit dimensionally. But get your engineer to sign off before you swap. Don't make that call on the loading dock.

Layer 3: Accessories — Where Orders Actually Die

Here's the thing: the material list isn't a pricing document. It's a schedule document. And the accessory layer is where every schedule stack-up lives.

In March 2024, a general contractor called at 4:47 PM. Panels already set. Pour scheduled for 6 AM the next morning. They were missing twelve wedge clamps and one tie rod that matched their system panels.

Normal turnaround on re-ships is five to seven business days. The pour was 13 hours out.

We found a vendor with stock, paid $420 in rush fees on top of a $240 base cost, and delivered by 1 AM. The client's alternative was a one-week delay on the pour, or a field modification that would have voided the panel's engineering sign-off.

Twelve clamps. That's it. $420 to keep a site moving.

The one I still kick myself over: a supplier told me on the phone that a delivery would land "by noon tomorrow." I didn't get it in writing. It didn't land. It didn't land for three days. We spent three weeks trying to recover downtime costs from that vendor and got nothing. Verbal promises aren't worth the call they came in on.

Our company policy now requires written ship confirmation on every rush order. Nothing verbal. Ever.

Layer 4: Shoring Systems and Scaffolding

Shoring systems aren't a standard parts catalog. Towers, adjustable props, base plates, and couplers have to match your concrete pressure calculations and slab loads. The European reference for shoring design is EN 12812, and adjustable steel props carry their own product spec under EN 1065. There's a separate standard because prop capacity drops as extension length increases. Run a prop at maximum extension without de-rating it and you're writing the outline for a site incident.

In Doka system terms, this layer covers shoring systems, floor props, free-standing towers, and the matching accessories — jack bases, screw jacks, base plates, couplers. None of it is optional. Pull any of it out and your shoring calc stops applying.

This layer also generates most of the emergency calls we take. Not panels. Shoring.

Baker Scaffold Distributor Buying Guide

Baker scaffold and formwork systems are different product lines. But they ride on the same truck more often than not, and distributors usually bundle them.

Baker scaffold — sometimes listed as mobile scaffold or rolling scaffold in catalogs — shows up more and more on interior fit-out, MEP, and finishing work because it sets up fast and rolls through a doorway.

When you're buying from a distributor, here's what actually deserves your time:

  • Platform capacity rating. Ask what standard it's rated to. In the US that's ANSI/ASSP A10.8 and OSHA 29 CFR 1926 Subpart L. Then ask what configuration that rating assumes. A bare "1000 lbs" with no configuration context tells you nothing.
  • Caster spec. Casters fail first. Ask about diameter, brake type, and whether replacements are standard parts. If you can only buy casters from the original supplier, your maintenance cost is going to quietly become a line item.
  • Frame gauge. "1.5-inch steel tubing" is a nominal phrase that means almost nothing. Ask for wall thickness. 16-gauge versus 14-gauge looks identical on a spec sheet and carries very differently on site.
  • Interchangeability. Does it match the heights and fittings you already have in inventory? Standard 7-foot frames, standard tube diameters, standard connector pins.
  • Spare parts stock. This one separates distributors from resellers. A distributor quoting four to six weeks on a replacement part isn't a distributor. You want someone with physical stock, or a 48-hour path to it.

The last point is where the efficiency angle comes in. The better distributors now surface stock counts for Baker scaffold and formwork accessories in their filter systems, not three phone calls away. You can check whether a specific clamp is available without asking a human.

Once we wired that into our own purchasing last year, our rush re-ship turnaround dropped from an average of five days to two. In this industry that's the difference between covering a shift and eating a delay penalty.

When This Process Doesn't Apply

Layering the list by urgency works on standard system formwork. It breaks down in a few specific situations:

  • Custom or non-standard components. The moment your list includes a fabricated piece, your bottleneck isn't sourcing — it's engineering review. You can priority-tier all you want; a design sign-off that hasn't cleared is still a wall.
  • First orders with a new distributor. Lead times on a first-time order run longer than quoted, almost without exception. Add two weeks of buffer on the first order. Not on the second.
  • Projects without a shoring calc. If the engineering review hasn't happened yet, your material list is a proposal, not an order. Don't place it as one.

One time-bound caveat: the lead times, pricing, and rush fee figures here reflect Q1 2025 conditions. Steel and timber pricing move fast. Verify current lead times and stock availability at the point of contract, not at the point of planning.

I built this workflow in 2017 and have revised it at least four times since. If you're still working the list top-to-bottom by product category, you're going to convert roughly every fifth order into a rush job you didn't need to run.
